A Level Physics (9702) Past Papers – Cambridge International

Practice Cambridge exam papers with instant results - Each time different questions are asked

Prepare for Cambridge International A Level Physics (9702) with interactive past paper quizzes. Covering mechanics, electricity, waves, thermal physics, and modern physics, these quizzes provide instant feedback and marking schemes to help you master exam techniques

40 randomized questions every attemp

No repeats — fresh challenges each time

Practice smarter, improve faster

0 votes, 0 avg
0

A Levels | Physics (9702)
Question Count : 40

Duration :1 hours

Hello .

TIME UP!!! Try Again


A Levels | Physics (9702)

Challenge yourself with 40 fresh questions every attempt — no two quizzes are ever the same! 🎯

1 / 40

Which ratio has the same units as electromotive force (e.m.f.)?

2 / 40

3 / 40

Which two units are identical when expressed in terms of SI base units?

4 / 40

5 / 40

6 / 40

7 / 40

A spring has an unstretched length of 4.50 cm. The spring is fixed at one end and a force of
35.0N is applied to the other end so that the spring extends.
The spring obeys Hooke’s law and has a spring constant of 420 N m–1.
What is the strain of the extended spring?

8 / 40

A resistor of resistance R is connected across a cell of electromotive force (e.m.f.) E and
negligible internal resistance.
Which single change to the circuit would lead to the largest increase in the power dissipated in
the resistor?

9 / 40

A metal wire obeys Hooke’s law and has a Young modulus of 2.0 × 1011Pa. The wire has an
original length of 1.6 m and a diameter of 0.48 × 10–3 m.
What is the spring constant of the wire?

10 / 40

11 / 40

Some sources of electromagnetic waves in free space are listed.

  1. a radio wave transmitter
  2. a source of X-rays
  3. a 30 mm wavelength radar transmitter
  4. a light-emitting diode that emits red light
    Which list gives the sources in order of increasing wavelength, from left to right, of the waves
    emitted by the sources?

12 / 40

13 / 40

14 / 40

15 / 40

16 / 40

A wire has a length of 3.0 m and is made of metal of resistivity 4.9 × 10–7 Ωm.
A potential difference (p.d.) of 12V is applied across the wire so that it has a current of 1.4A.
What is the cross-sectional area of the wire?

17 / 40

18 / 40

19 / 40

20 / 40

What is a power of 3.7 MW when expressed in kilowatts?

21 / 40

22 / 40

What is the approximate range of frequencies of electromagnetic radiation visible to the human
eye?

23 / 40

A system with an efficiency of 74% wastes 230W of power.
What is the useful output power of the system?

24 / 40

25 / 40

26 / 40

27 / 40

Which microorganisms have a length that is equal to the wavelength in free space of an
electromagnetic wave that is visible to the human eye?

28 / 40

A cyclist in still air pedals as hard as she can. She reaches a maximum speed. However, after a
certain time her maximum speed increases.
What could be a possible cause for this?

29 / 40

A ball is kicked upwards at an angle of 45° to horizontal ground. After a short flight, the ball
returns to the ground.
It may be assumed that air resistance is negligible.
What is never zero during the flight of the ball?

30 / 40

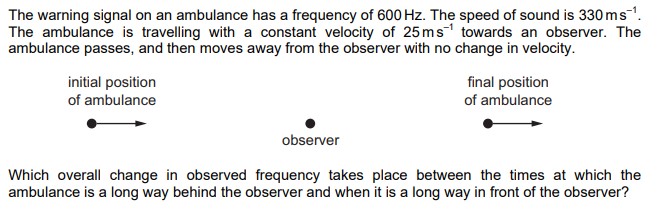

A source emits a sound wave of a single frequency. The Doppler effect causes a different
frequency of sound to be heard by a stationary observer.

What is a requirement for the Doppler effect to occur?

31 / 40

A power supply is connected to a component by connecting wires of total resistance 4.9 .
The power supply has an output power of 3.6 W and a terminal potential difference of 12V.
How much thermal energy is dissipated in the connecting wires in a time of 1.0 hour?

32 / 40

33 / 40

A transverse wave and a longitudinal wave both travel in the same direction down a long
stretched spring.
Which statement is not correct for these two forms of wave?

34 / 40

35 / 40

A miniature loudspeaker, initially at rest, falls vertically from a window in a high building. When
the speaker has fallen a distance of 10.0 m, it emits a very short pulse of sound of constant
frequency 256 Hz in all directions. The pulse of sound, travelling at a speed of 330 m s–1, is heard
by a person leaning out of the window.
Air resistance is negligible.
What is the frequency of the pulse of sound heard by the person?

36 / 40

37 / 40

38 / 40

Which unit is not an SI base unit?

39 / 40

40 / 40

Which statement about scalar and vector quantities is correct?

Your score is

0%

Boost your exam performance with guided past paper practice.
